FAG INA Schaeffler
INA
DRS30105
Seal carrier Assy DRS30105
Thêm vào yêu cầu báo giá

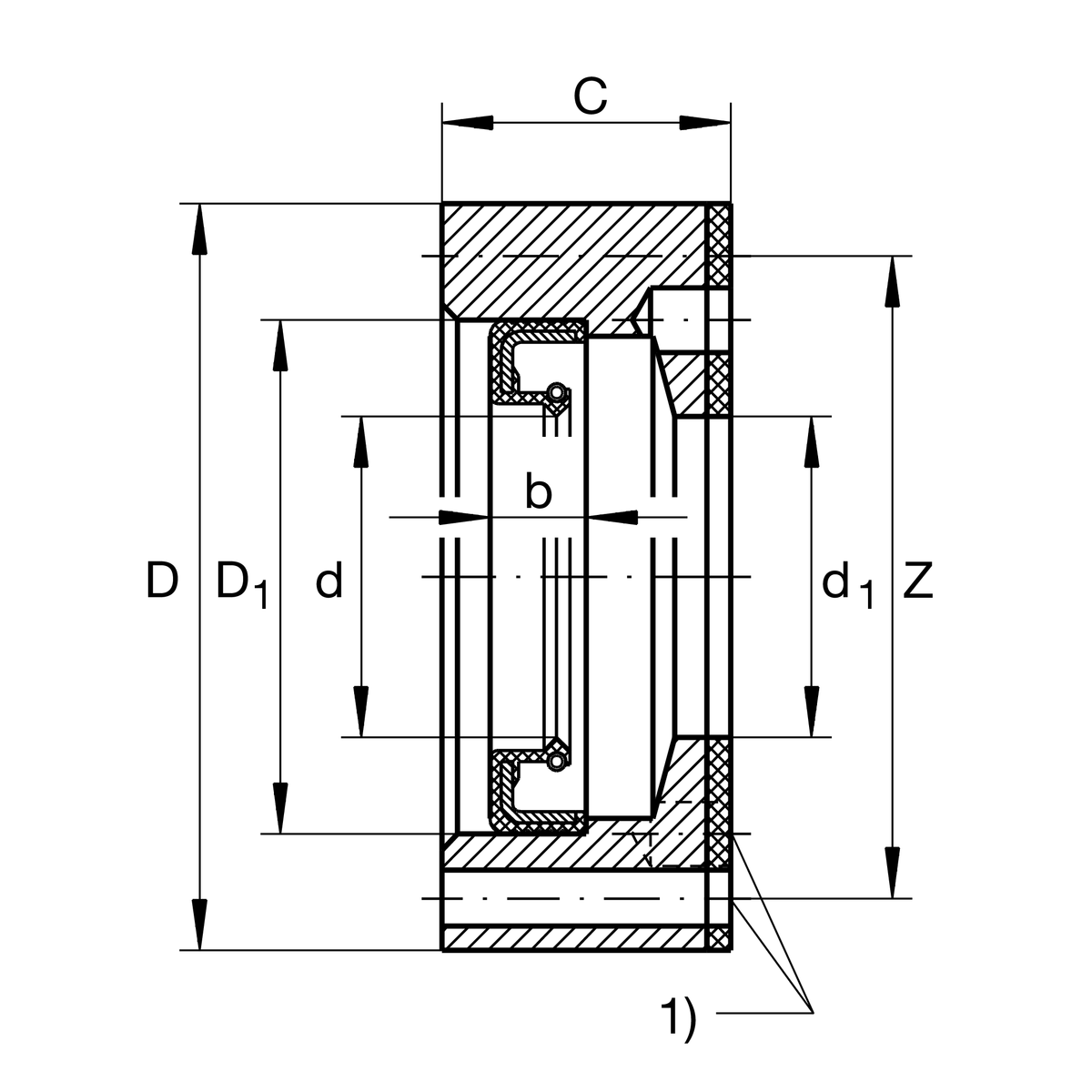

Main Dimensions & Performance Data
d1
68 mm
Inner diameter centering
D
105 mm
Outside diameter
C
25 mm
Width wave carrier
≈m
0.659 kg
Weight

Dimensions
Z
95 mm

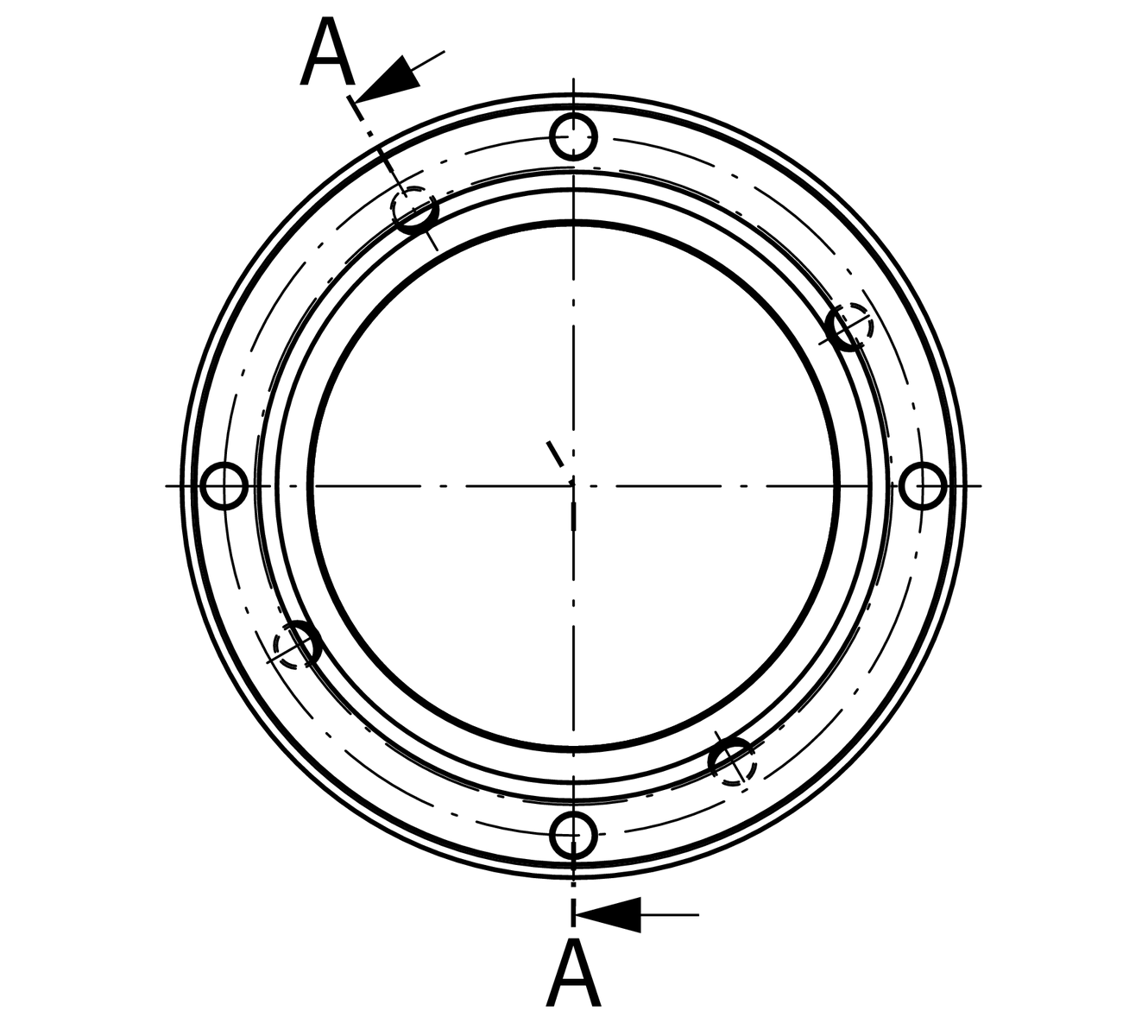

Pitch circle diameter (holes)
d
68 mm
Inner diameter centering seal lip
D1
85 mm
Outside diameter seal
b
10 mm
Width seal
M4X35
Screw size
1)
4
Number of screws

Additional information
ZARF30105(-L)-TV
Bearing designation
