ARCALUB-X.CHAIN-PINION-12B1-Z8-G
Chain pinion ARCALUB-X.CHAIN-PINION-12B1-Z8-G
Thêm vào yêu cầu báo giá

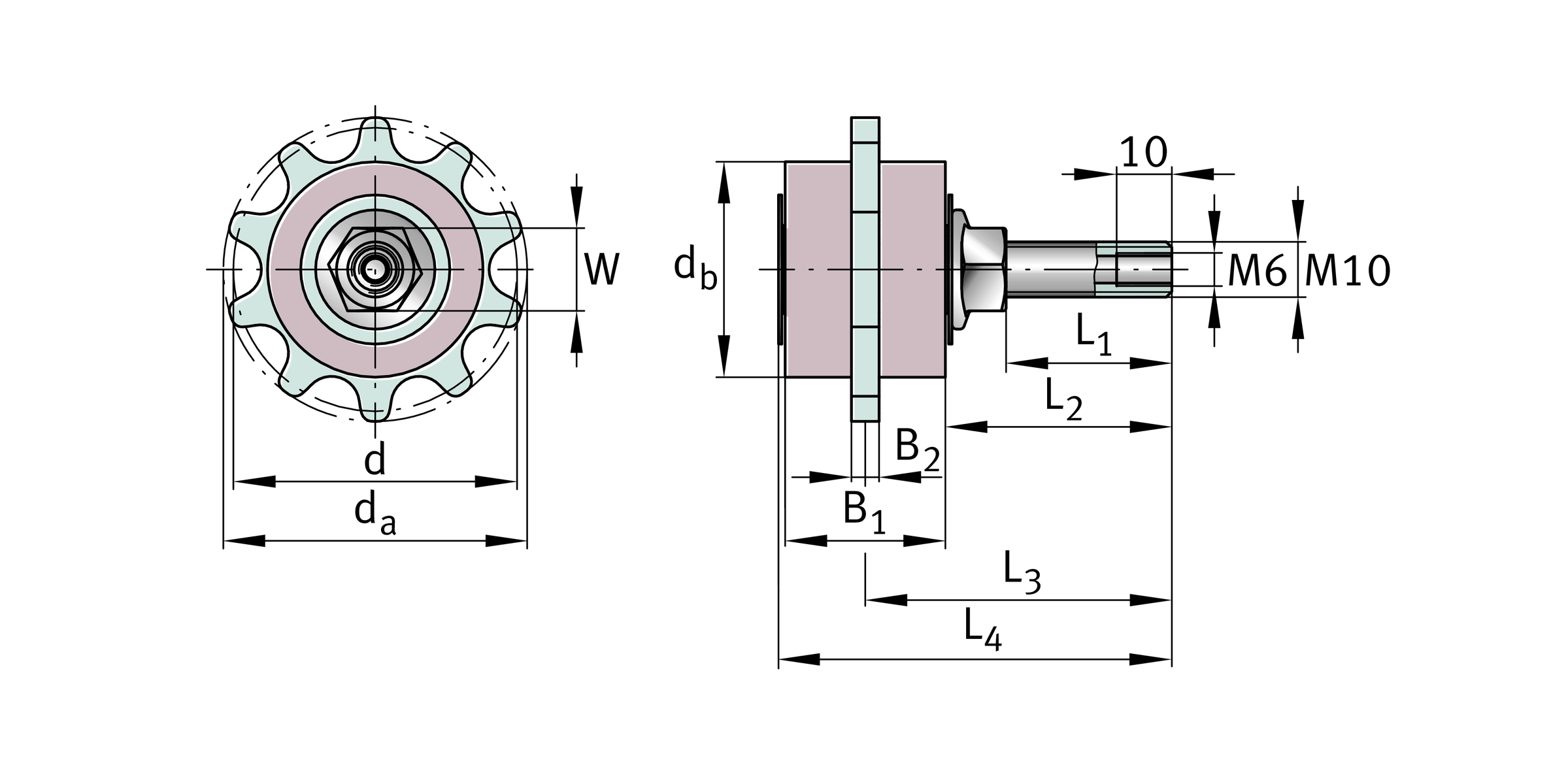

Technical data
Lubrication of chains
Usage
Simplex (single-row)
Design
axial
Lubricant feed
top
0 °C … +60 °C
Operating temperature
7 m/s
Max. permissible circumferential speed at outside diameter
Oil
Lubricant
12 B-1
Chain type according to ISO 606
z
8
Teeth number
d
49.78 mm
Pitch circle diameter
da
55 mm
db
36 mm
B1
29 mm
B2
5 mm
L1
30 mm
L2
41 mm
L3
55.5 mm
L4
71.2 mm
W
15 mm
Width across flats
≈m
300 g
Weight

Your current product variant
VersionAB-/B-1Chain lubrication pinions, simplex design
