G1100-XL-KRR-B-AS2/V
Radial insert ball bearing G1100-XL-KRR-B-AS2/V
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
25.4 mm
Bore diameter
d
25.4 mm
Bore diameter, inch
DSP
52 mm
Outside diameter
B
34.9 mm
Width
Cur
410 N
Fatigue load limit, radial
B1
44.5 mm
Locking collar total width
Cr
14,900 N
Basic dynamic load rating, radial
C0r
7,800 N
Basic static load rating, radial
≈m
0.229 kg
Weight

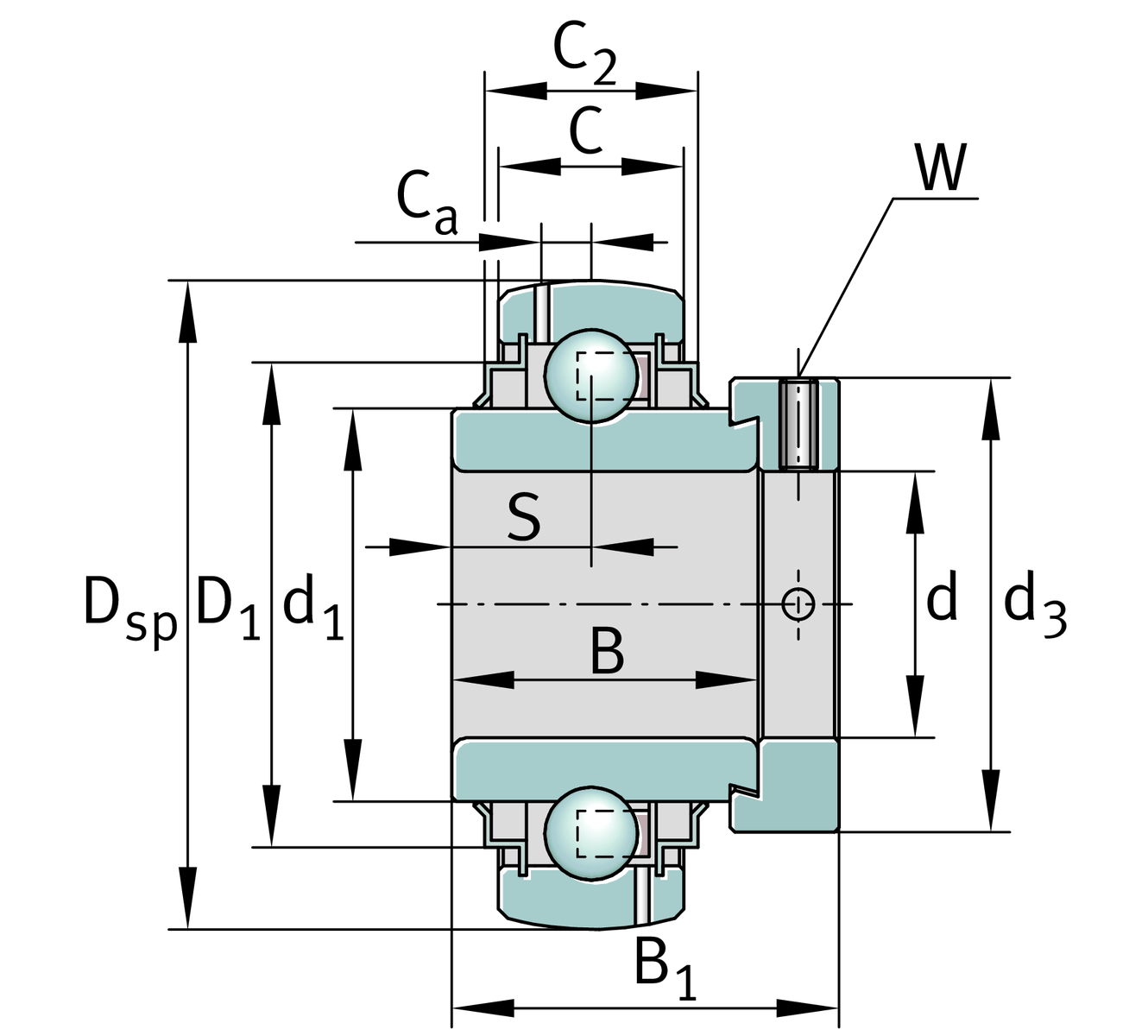

Dimensions
C
15 mm
Width, outer ring
C2
16.5 mm
Sealing total width
S
17.5 mm
Distance raceway
d1
33.8 mm
Rib diameter inner ring
D1
42.5 mm
Outside diameter seal
Ca
3.9 mm
Distance to lubrication hole
d3
37.5 mm
Outside diameter locking collar/locknut

Temperature range
Tmin
-20 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Calculation factors
f0
13.8
Calculation factor

Your current product variant
SealingKRRLip seals on both sides
Shape of outer surfaceB
Lubrication hole transposedAS2/VAS2/V
