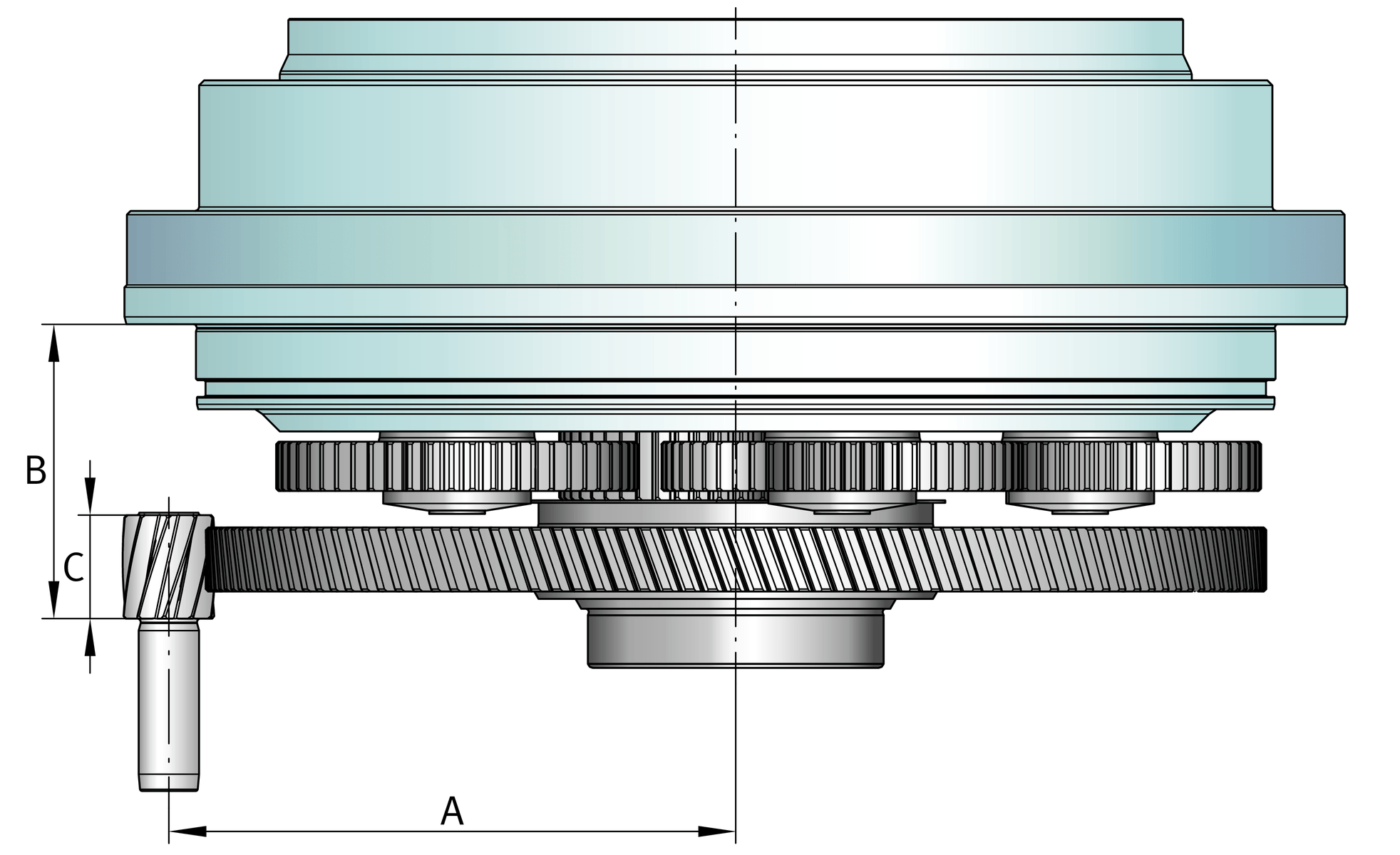

Main Dimensions & Performance Data
| i | 56 | Gear reduction ratio |
| JJ | 21.39 kg*cm2 | Mass moment of interia at input |
| nmax out | 72 1/min | Max. output speed |
| nmax per In | 4,000 1/min | Maximum input drive speed |
| nper In | 2,500 1/min | |
| Ck | 8,810 Nm/arcmin | Tilting rigidity |
| Cr | 1,240 Nm/arcmin | Torsional rigidity |
| MOut | 3,435 Nm | Maximum torque |
| Mnom Out | 2,690 Nm | Rated torque |
| Macc | 3,765 Nm | Acceleration moment |
| Mestopp | 8,990 Nm | E-stop moment |
| MTilt | 4,800 Nm | Continuous tilting moment |
| MTilt estop | 11,410 Nm | Max. e-stop tilting moment |
| Fa max dyn | 42.5 kN | Max. dynamic axial force |
| Fa max stat | 400 kN | Max. static axial force |
| Fr max stat | 26.5 kN | Max. dynamic radial force |
| Fr max stat | 140 kN | Max. static radial force |
| Pρ | 92 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 0.6 arcmin | Lost Motion at output |
| Ups | 50 arcsec | Synchronous running accuracy |
| ≈m | 37.4 kg | Weight |
Your current product variant
| Size code | 300 | 300 |
| Design variant | E | Mounting kit |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Design | H | Hollow shaft |
