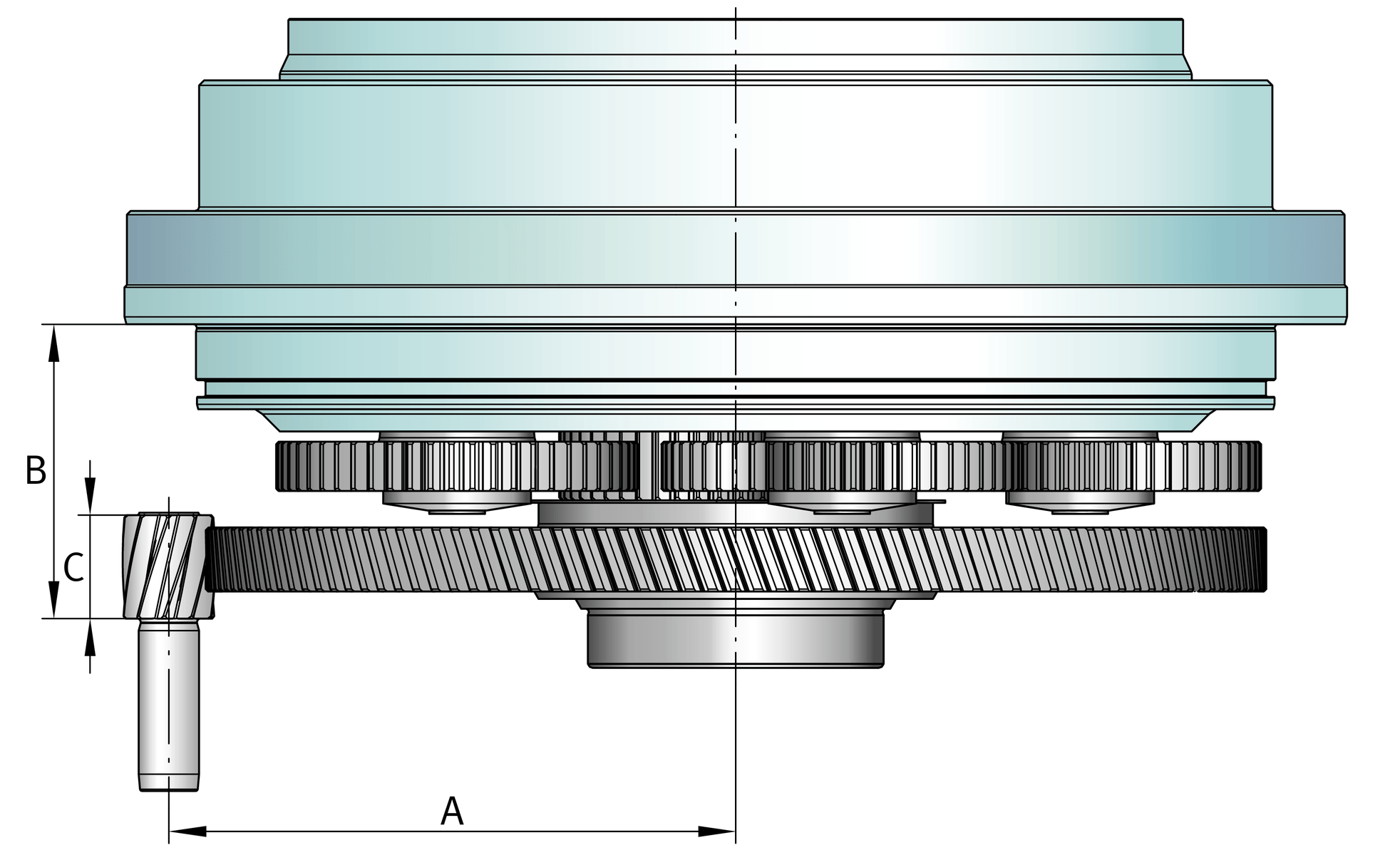

Main Dimensions & Performance Data
| i | 35.5 | Gear reduction ratio |
| JJ | 29.38 kg*cm2 | Mass moment of interia at input |
| nmax out | 90 1/min | Max. output speed |
| nmax per In | 3,245 1/min | Maximum input drive speed |
| nper In | 3,000 1/min | |
| Ck | 4,100 Nm/arcmin | Tilting rigidity |
| Cr | 820 Nm/arcmin | Torsional rigidity |
| MOut | 2,325 Nm | Maximum torque |
| Mnom Out | 1,820 Nm | Rated torque |
| Macc | 2,550 Nm | Acceleration moment |
| Mestopp | 6,090 Nm | E-stop moment |
| MTilt | 3,060 Nm | Continuous tilting moment |
| MTilt estop | 9,280 Nm | Max. e-stop tilting moment |
| Fa max dyn | 32 kN | Max. dynamic axial force |
| Fa max stat | 315 kN | Max. static axial force |
| Fr max stat | 20 kN | Max. dynamic radial force |
| Fr max stat | 100 kN | Max. static radial force |
| Pρ | 84 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 0.6 arcmin | Lost Motion at output |
| Ups | 50 arcsec | Synchronous running accuracy |
| ≈m | 27.7 kg | Weight |
Your current product variant
| Size code | 224 | 224 |
| Design variant | E | Mounting kit |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Design | H | Hollow shaft |
