Main Dimensions & Performance Data
| d | 850 mm | Bore diameter bearing |
| D | 1,220 mm | Outside diameter bearing |
| B | 600 mm | Width Inner ring |
| C | 565 mm | Width Outer ring |
| Cr | 45,000,000 N | Basic dynamic load rating, radial |
| C0r | 67,000,000 N | Basic static load rating, radial |
| ≈m | 2,600 kg | Weight |

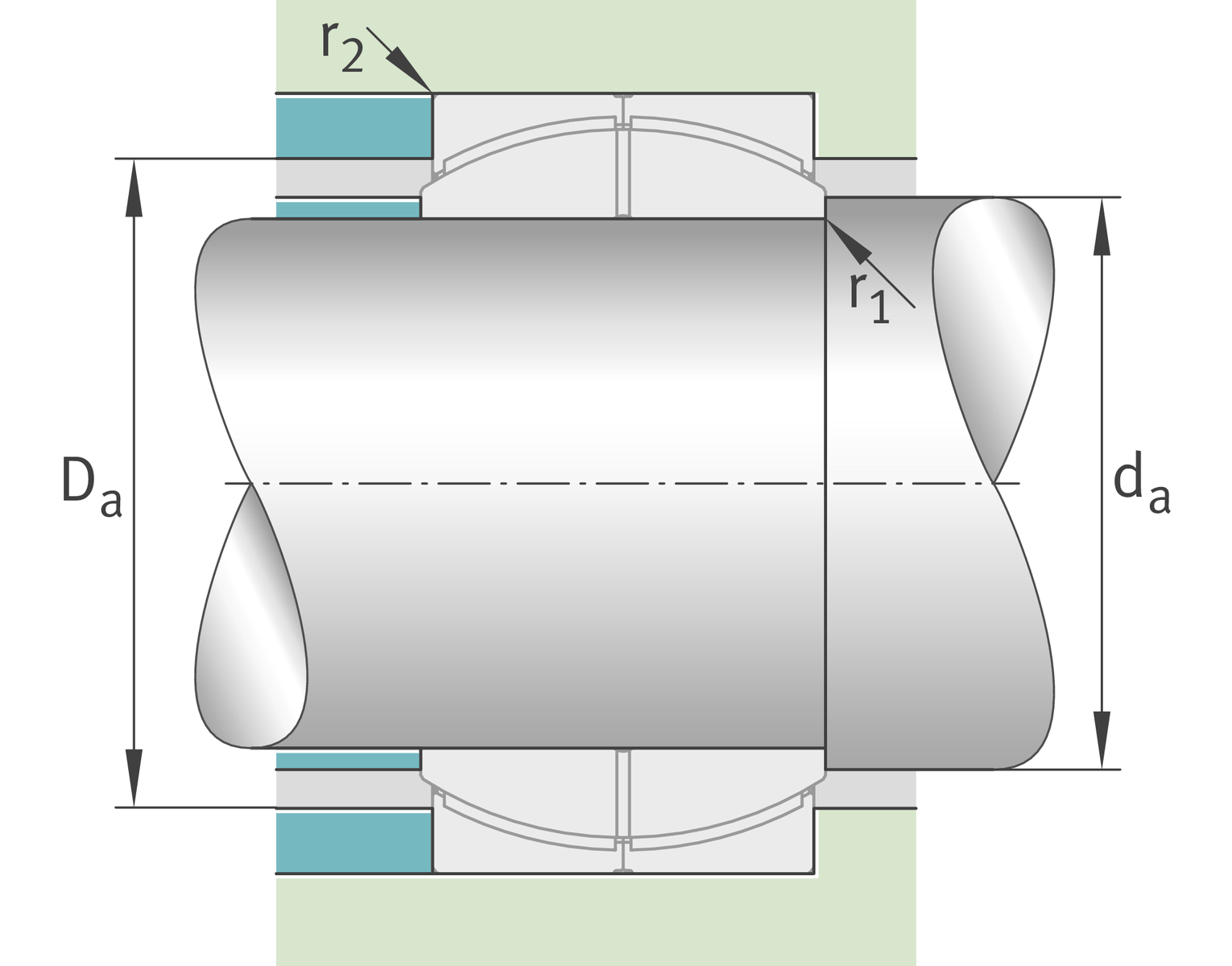

Mounting dimensions
| r1smin | 3 mm | Edge Spacing |
| r2smin | 7.5 mm | Edge Spacing |
| Da min | 1,035 mm | Housing Connection Diameter |
| damax | 936 mm | Connection measurement, inner ring |

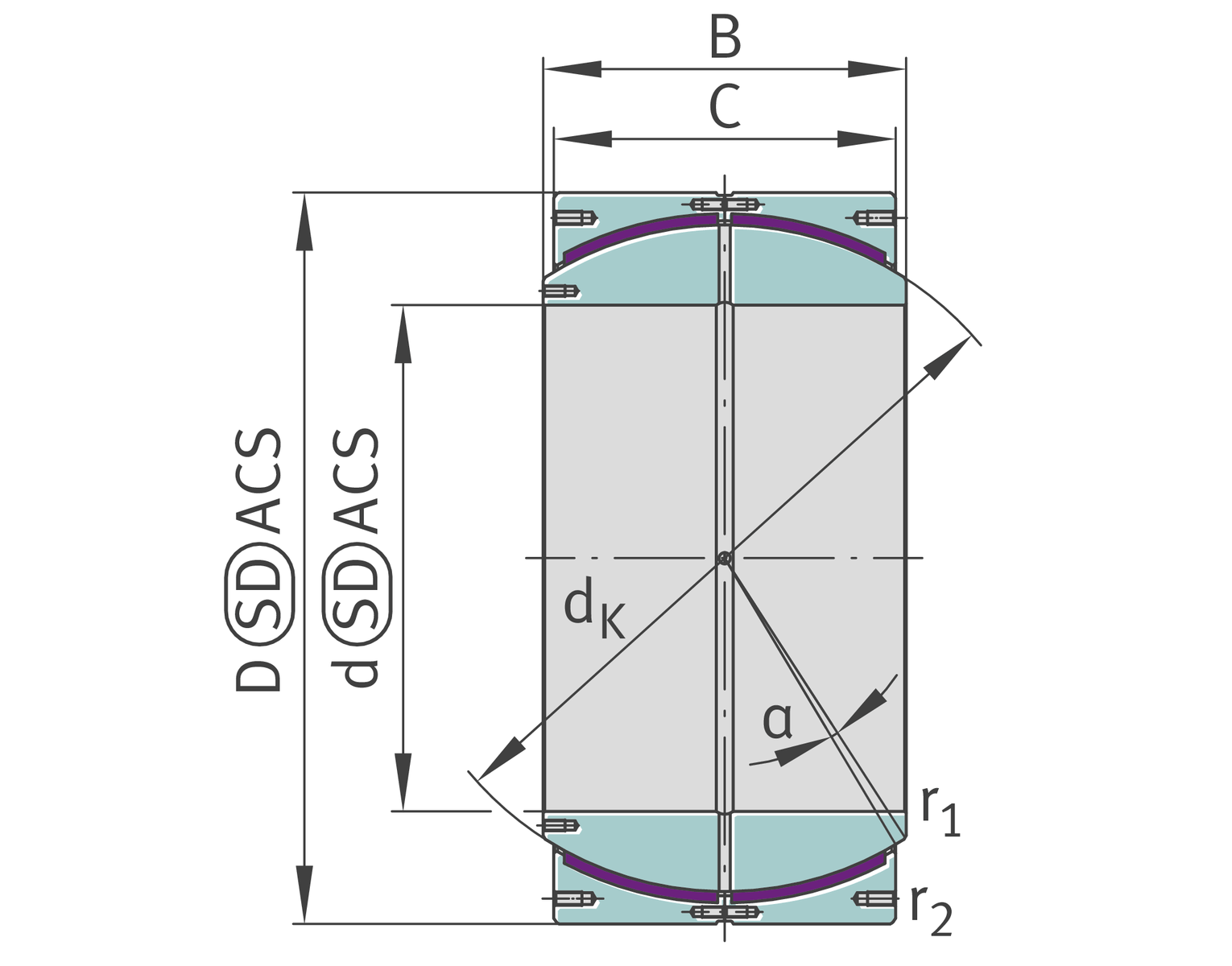

Dimensions
| dK | 1,112 mm | Ball diameter |
| α | 2 ° | Tilt angle |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.125 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| dUT | -0.125 mm | Bore diameter bearing, lower tolerance |
| BUT | -1 mm | Width inner ring, lower tolerance |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
| CUT | -1.3 mm | Width outer ring, lower tolerance |
| Gr | 0,195 - 0,700 mm | Radial Clearance |
| Grmax | 0.7 mm | Radial clearance, maximum |
| Grmin | 0.195 mm | Radial clearance, minimum |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 75 °C | Operating temperature max. |
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN (Group N) | Normal internal clearance |
| Bore lining | Without | |
| Coating | Without | |
| Material | Steel | Steel |
| Fabric | GFK+PTFE | Glass fibre-reinforced sliding plastic plate with additives of PTFE |
