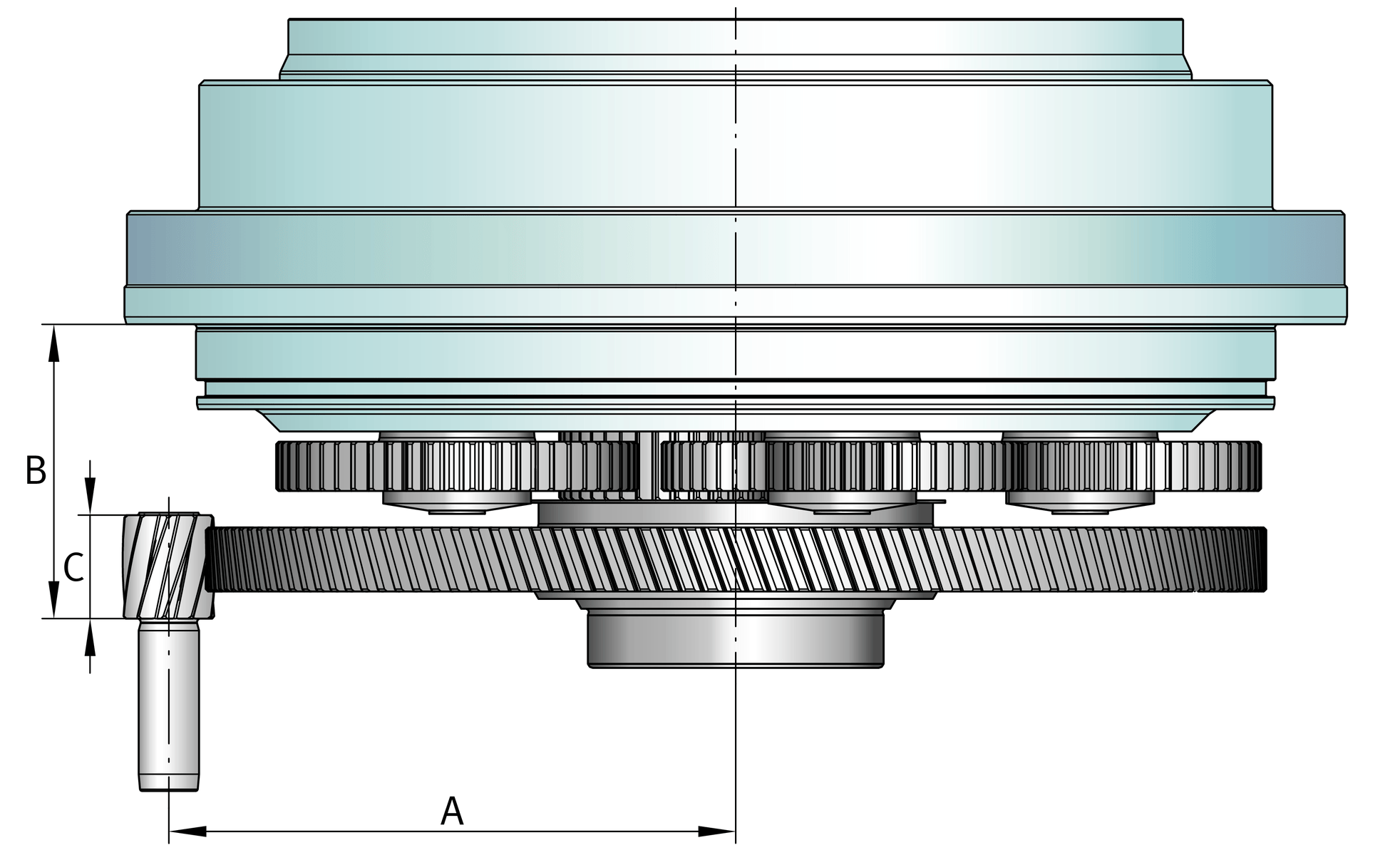

Main Dimensions & Performance Data
| i | 35.5 | Gear reduction ratio |
| JJ | 9.63 kg*cm2 | Mass moment of interia at input |
| nmax out | 100 1/min | Max. output speed |
| nmax per In | 3,506 1/min | Maximum input drive speed |
| nper In | 3,500 1/min | |
| Ck | 3,315 Nm/arcmin | Tilting rigidity |
| Cr | 480 Nm/arcmin | Torsional rigidity |
| MOut | 1,480 Nm | Maximum torque |
| Mnom Out | 1,165 Nm | Rated torque |
| Macc | 1,630 Nm | Acceleration moment |
| Mestopp | 3,780 Nm | E-stop moment |
| MTilt | 2,410 Nm | Continuous tilting moment |
| MTilt estop | 5,910 Nm | Max. e-stop tilting moment |
| Fa max dyn | 29.5 kN | Max. dynamic axial force |
| Fa max stat | 270 kN | Max. static axial force |
| Fr max stat | 18 kN | Max. dynamic radial force |
| Fr max stat | 85 kN | Max. static radial force |
| Pρ | 93 Nm/kg | Power density |
| φα back | 0.1 arcmin | Torsional backlash at output |
| φα lost | 0.6 arcmin | Lost Motion at output |
| Ups | 50 arcsec | Synchronous running accuracy |
| ≈m | 15.9 kg | Weight |
Your current product variant
| Size code | 112 | 112 |
| Design variant | E | Mounting kit |
| Product type | PSC | Precision Planetary Gearboxes Series PSC |
| Design | H | Hollow shaft |
