UCFA211-32

Take-up housing unit UCFA211-32

Thêm vào yêu cầu báo giá

Main Dimensions & Performance Data

d	50.8 mm	Bore diameter
L	219 mm	Length total
U	58.4 mm	Total height unit
≈m	3.11 kg	Weight

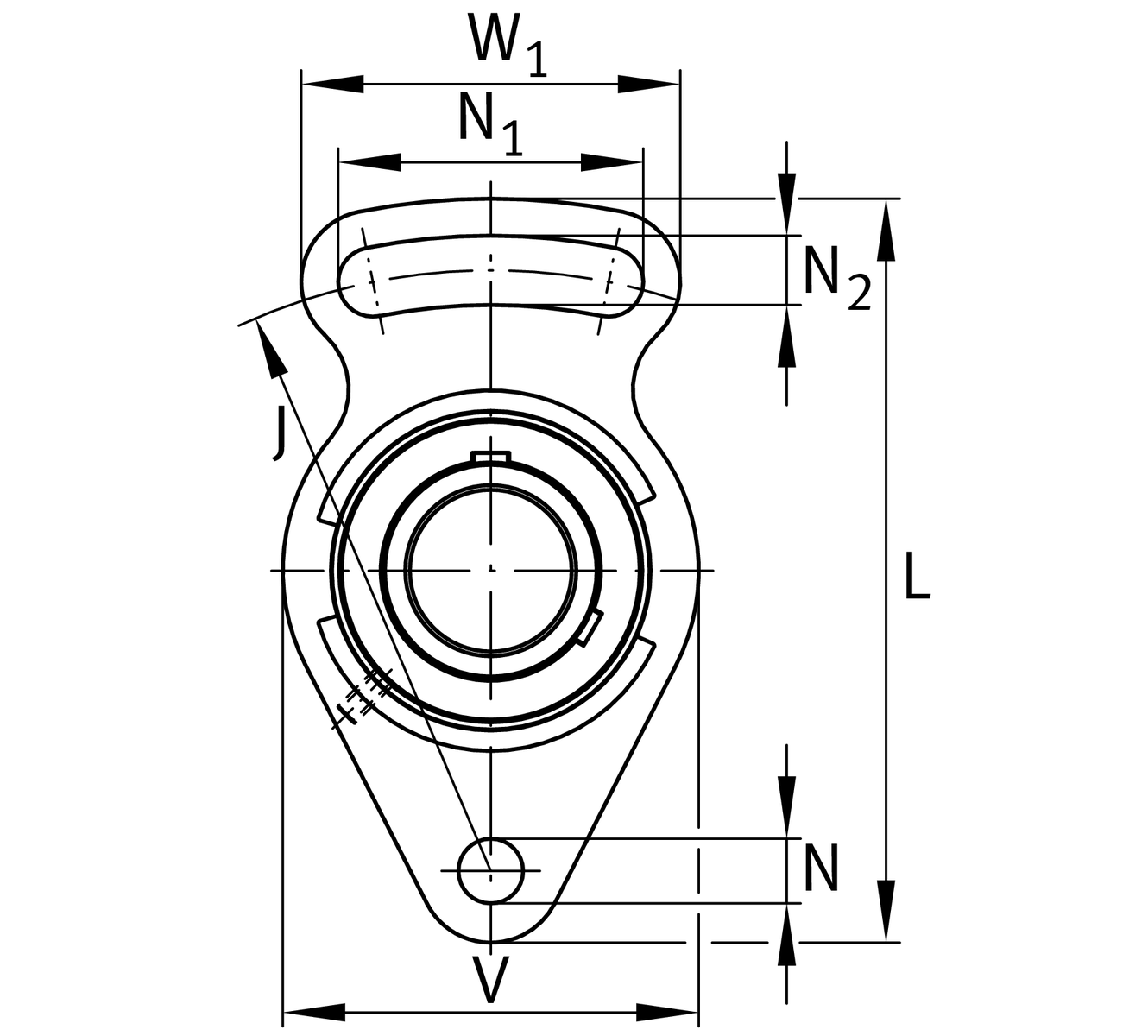

Mounting dimensions

N	16 mm	Fixing bore
N₁	86 mm	Length (slot)
N₂	16 mm	Width (slot)
J	184 mm	Distance fixing bore

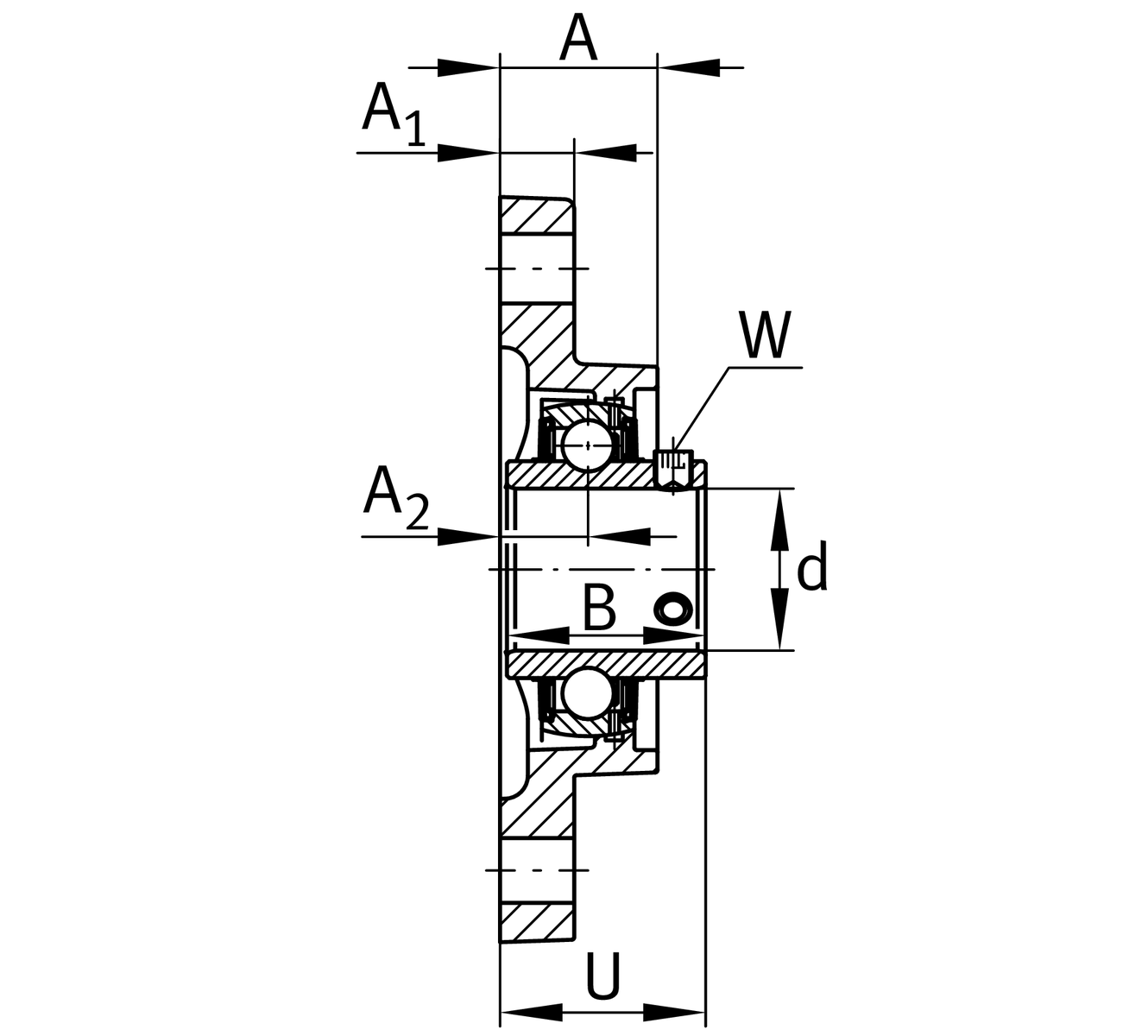

Dimensions

A₁	20 mm	Thickness of flange
A₂	25 mm	Distance raceway
A	43 mm	Height housing
V	130 mm	Shoulder diameter housing
W	104 mm	Width housing slot side
Q	M6	Connection thread for lubrication

Additional information

	FA211	Housing
	UC211-32	Bearing designation

Temperature range

T_min	-20 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Your current product variant

Material	GG	Grey cast iron
