CSXB020
Four-point contact bearing CSXB020
Thêm vào yêu cầu báo giá
Main Dimensions & Performance Data
d
50.8 mm
Bore diameter
D
66.675 mm
Outside diameter
B
7.938 mm
Width
Cr
6,300 N
Basic dynamic load rating, radial
C0r
6,200 N
Basic static load rating, radial
nG
6,700 1/min
Limiting speed
≈m
68.32 g
Weight

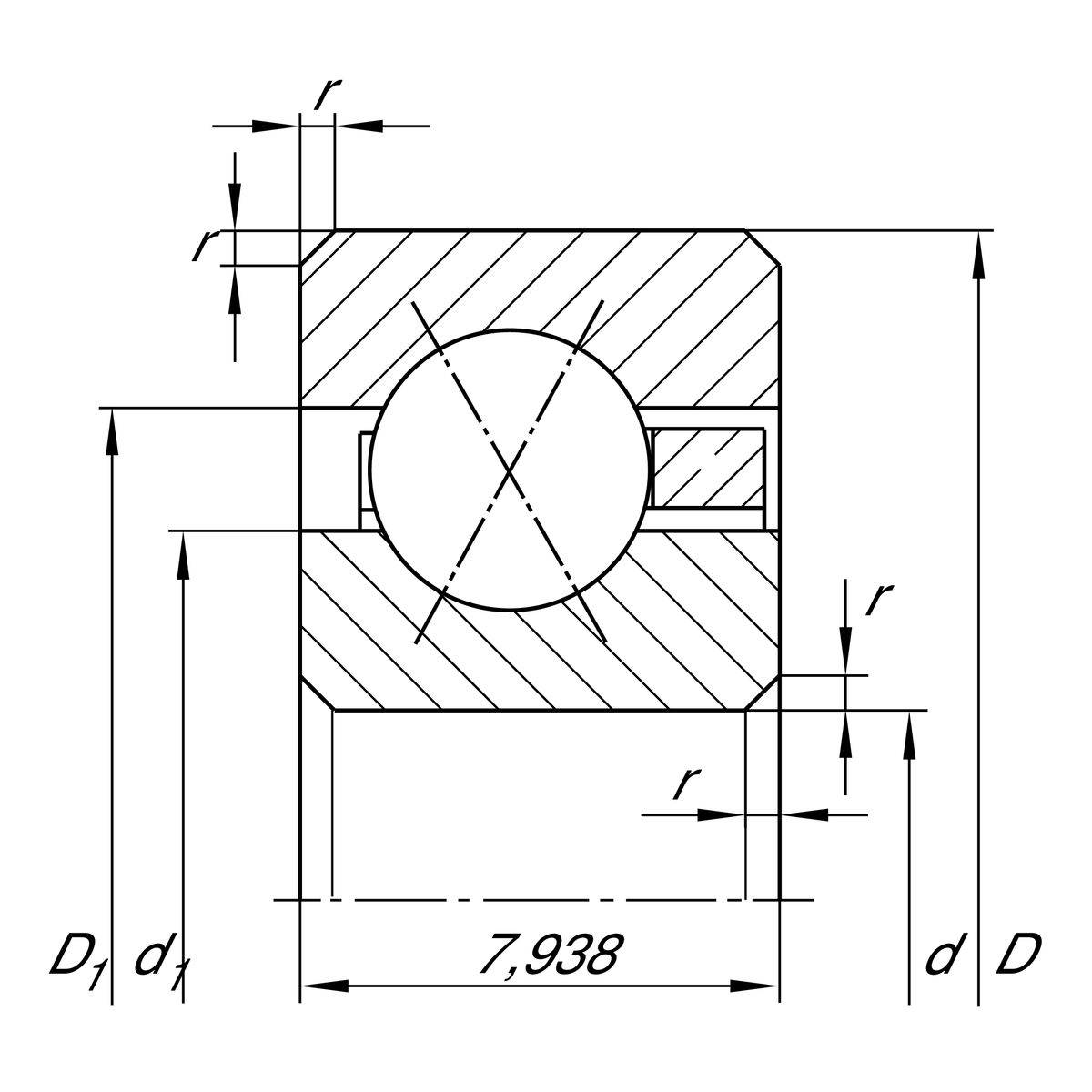

Dimensions
rmin
1 mm
Minimum chamfer dimension
d1
56.7 mm
Shoulder diameter inner ring
D1
60.8 mm
Shoulder diameter outer ring
α
30 °
Contact angle

Temperature range
Tmin
-30 °C
Operating temperature min.
Tmax
120 °C
Operating temperature max.

Your current product variant
SealingWithoutNot sealed
CageYHbrass sheet metal
Tolerance classPL1Class PL1, Normal
LubricantWithoutBearing not greased
Radial internal clearancePL1Class PL1, Normal
