Main Dimensions & Performance Data
| d | 800 mm | Bore diameter |
| D | 1,420 mm | Outside diameter |
| B | 488 mm | Width |
| Cr | 20,000,000 N | Basic dynamic load rating, radial |
| C0r | 41,500,000 N | Basic static load rating, radial |
| Cur | 1,590,000 N | Fatigue load limit, radial |
| nG | 365 1/min | Limiting speed |
| nϑr | 130 1/min | Reference speed |
| ≈m | 3,307 kg | Weight |

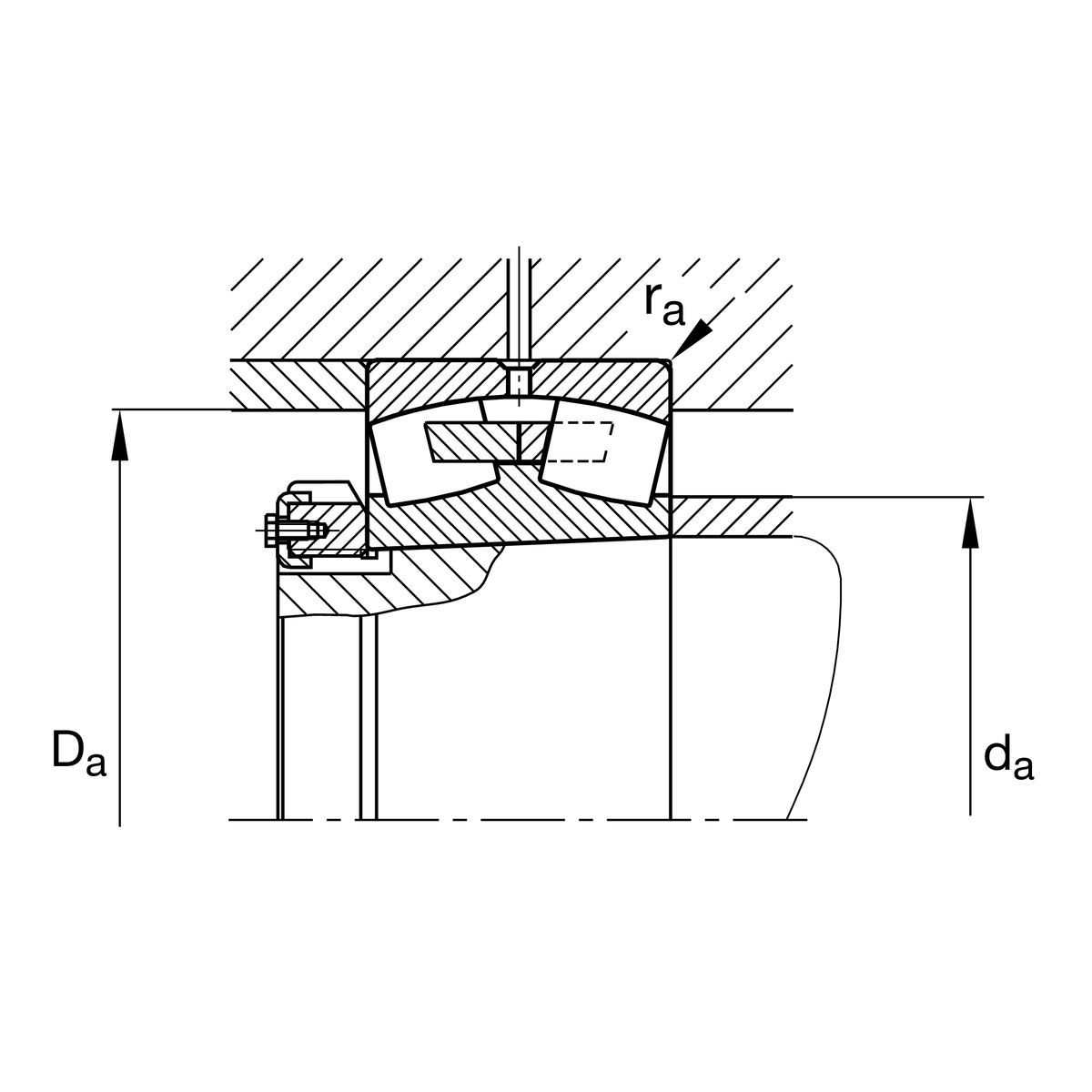

Mounting dimensions
| da min | 858 mm | Minimum diameter shaft shoulder |
| Da max | 1,362 mm | Maximum diameter of housing shoulder |
| ra max | 12 mm | Maximum recess radius |
Dimensions
| rmin | 15 mm | Minimum chamfer dimension |
| ds | 12.5 mm | Diameter lubrication hole |
| ns | 23.5 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.36 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 1.87 | Dynamic axial load factor |
| Y2 | 2.79 | Dynamic axial load factor |
| Y0 | 1.83 | Static axial load factor |
Your current product variant
| Bore type | K | Tapered, taper 1:12 |
| Cage | MB | Solid brass cage |
| Radial internal clearance | C3 (Group 3) | Internal clearance larger than CN |
| Relubrication feature | Standard |
