Main Dimensions & Performance Data
| Di | 8 mm | Inner diameter |
| Do | 10 mm | Outer diameter |
| Dfl | 15 mm | Outside diameter of flange |
| B | 5.5 mm | Width |
| Cr | 3,920 N | Basic dynamic load rating, radial |
| C0r | 7,000 N | Basic static load rating, radial |
| Ca | 8,910 N | Basic dynamic load rating, axial |
| C0a | 15,900 N | Basic static load rating, axial |
| ≈m | 1.55 g | Weight |

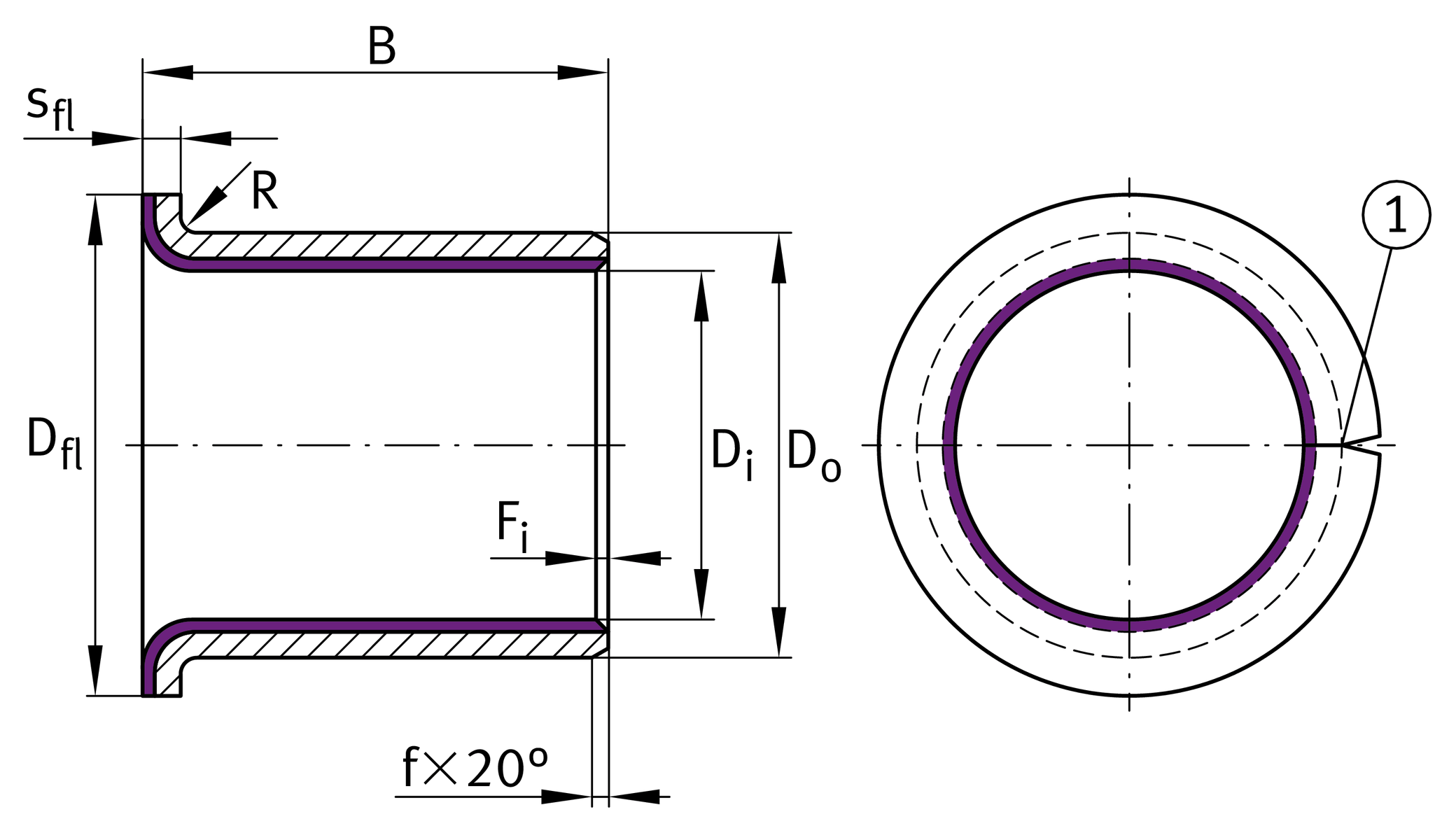

Dimensions
| f | 20 ° | Chamfer angle outside diameter |
| sfl | 1 mm | Flange thickness |
| Rmax | 1 mm | Radius, max. |
| f | 0.6 mm | Outer chamfer |
| Fi max | 0.6 mm | Inner edge break, max. |
| Fi min | 0.1 mm | Inner edge break, min. |
| s3 | 1 mm | Wall thickness |
| Dfl OT | 0.5 mm | Outside diameter of flange, upper tolerance |
| Do OT | 0.055 mm | Outside diameter, upper tolerance |
| s3 OT | 0.005 mm | Wall thickness, upper tolerance |
| Dfl UT | -0.5 mm | Outside diameter of flange, lower tolerance |
| s3 UT | -0.02 mm | Wall thickness, lower tolerance |
| Do UT | 0.025 mm | Outside diameter, lower tolerance |
| BOT | 0.25 mm | Width, upper tolerance |
| BUT | -0.25 mm | Width, lower tolerance |
| sfl OT | 0.05 mm | Flange thickness, upper tolerance |
| sfl UT | -0.2 mm | Flange thickness, lower tolerance |
| fOT | 0.4 mm | Outer chamfer, upper tolerance |
| fUT | -0.4 mm | Outer chamfer, lower tolerance |
Temperature range
| Tmin | -200 °C | Operating temperature min. |
| Tmax | 280 °C | Operating temperature max. |
Your current product variant
| Material sliding Layer | E40 | Maintenance-free sliding layer E40 |
| Material back | Steel |
